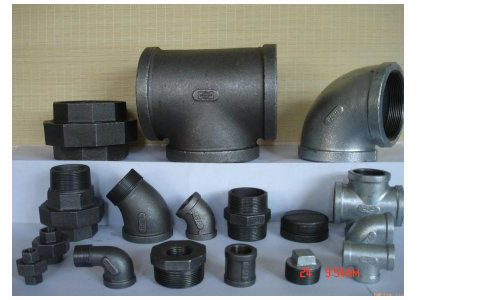

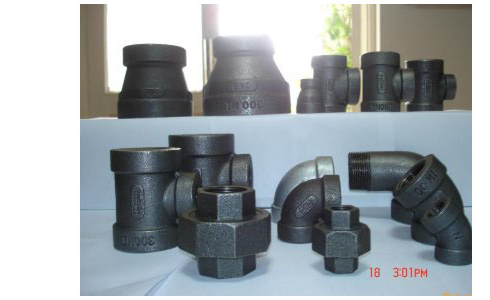

Cast iron fittings are strong and don't rust.
90 and 45 degree elbows are used to change the direction of the flow of water 45 or 90 degrees. These fittings are connected directly to a cast iron pipe. Tees are used to either combine or split fluid flow. They are also used to connect pipes of different diameters or for changing the direction of pipe runs. Reducer couplings reduce a pipe from one size to a smaller size.
 |

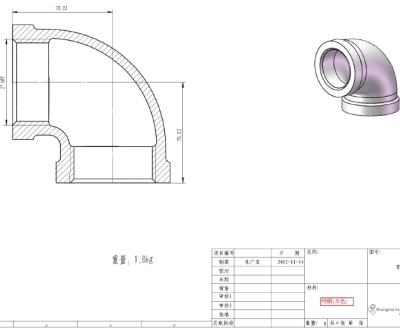

Cast Iron 90 degree Elbow 1/2", 3/4", 1-1/4",2", 4", 1" x 3/4",1-1/4" x 1",1-1/2" x 1-1/4",2" x 1-1/2" ,3" x 2", 4" x 2"... Metric sizes available |
 |
Cast Iron 45 degree Elbow 1/2", 3/4", 1-1/4",2", 3" , 4" ... Metric sizes available |
 |
Cast Iron Tee 1/2" , 1-1/2", 3/4" x 3/4" x 1/2", 1-1/4" x 1-1/4" x 3/4" ... Metric sizes available |
 |
Cast Iron Reducer 1" x 3/4", 1" x 1/2", 2" x 3/4", 2" x 1", 3" x 1-1/2"... Metric sizes available |
Thread Options:
NPT: National(American)Pipe Thread, 60 degree
PT: (BSPT)Pipe Thread standards for Europe
RP (Parallel Internal Thread), RC (Taped Internal Thread), R1 (External Thread for RP),R2 (External Thread for RC), LH (Left hand)

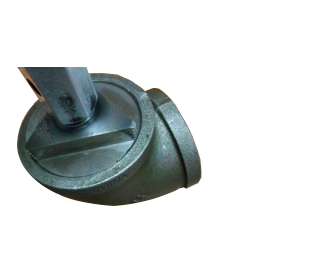

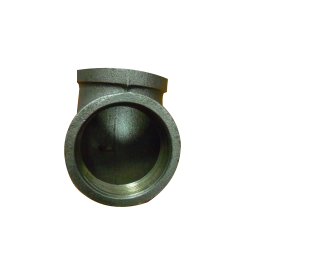

The last picture shows how we measure the thread.
Material: Malleable Iron, Surface Finish: Sand Blast
Standards:
- ASTM A197: Specification for Cupola Malleable Iron
- ASME B1.20.1: NPT pipe threads
- ASME B16.3: Malleable iron threaded fittings
Material: ISO5922, Dimensions: ISO49, Threads: ISO7/1 (BSPT) Material: DIN1692, Dimensions: DIN2950, Threads: DIN2999 Other choices of mallable iron fittings that we offer Other International Standards:
